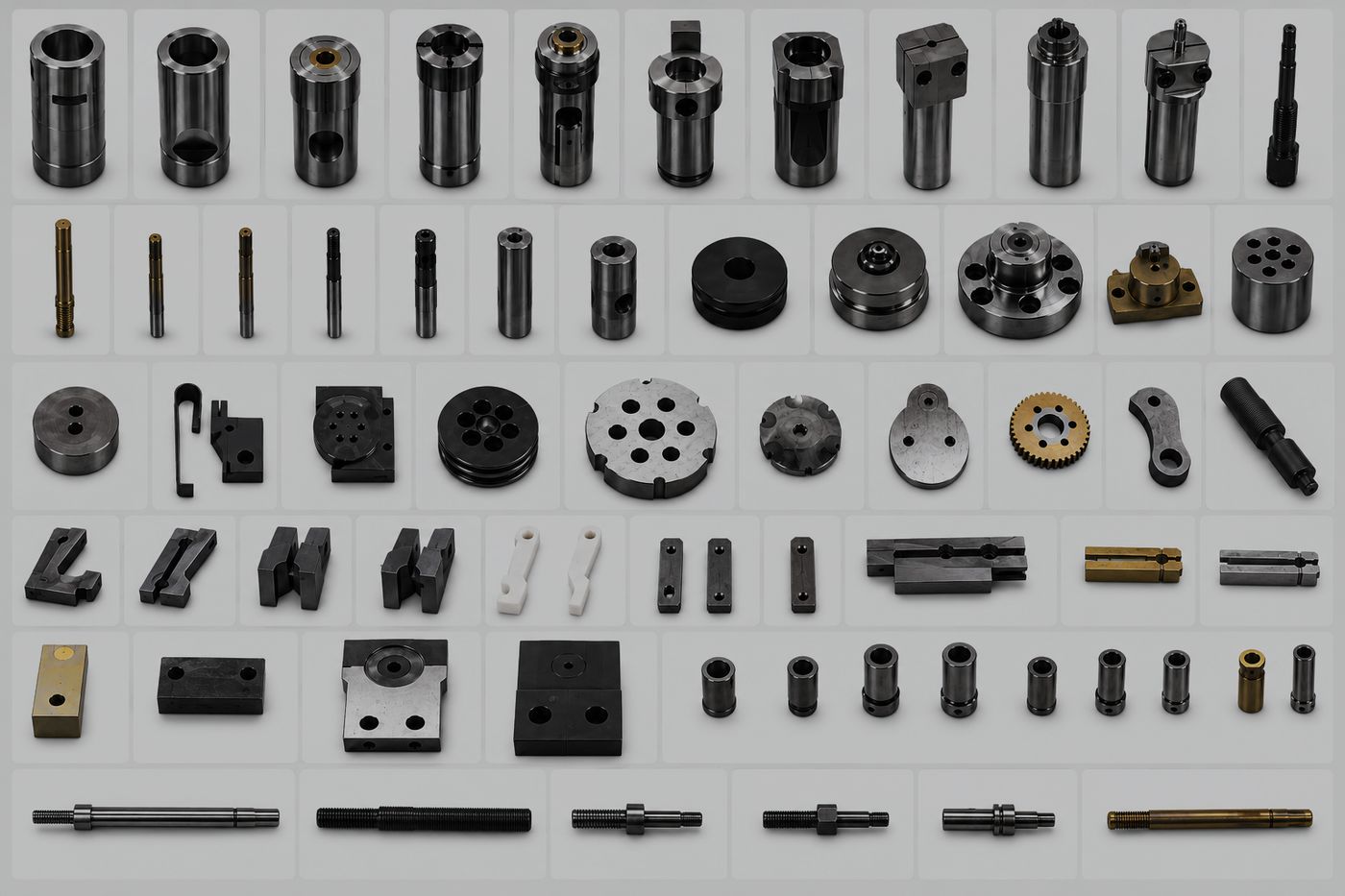

Nut Former Tooling
A complete matched tooling package for multi-station nut forming machines.
Most enquiries are not for a single item — they are for the tooling a machine needs to run. We supply dies, punches, KO pins, segments and cutter holders as a matched package.
Supplying as a set means the tolerances relate to each other rather than each item being correct only in isolation, which is where most fitment problems come from.
Features
- Dies, punches, KO pins, segments and holders as one set
- Tolerances related across the package
- Matched to the machine and the part
- Repeat sets produced from record
Applications
- New tooling for an existing former
- Bringing a new part into production
- Scheduled replacement of a complete set
Specifications
| Contents | Dies · punches · KO pins · segments · holders |
|---|---|
| Range | 8B to 38B |
| Larger sizes | To customer AutoCAD drawing |
| Heat treatment | Vacuum |
