Cold forging dies
Heading Dies
Heading dies that form the head geometry on bolts, nuts and cold-forged fasteners.
Heading dies take the blank and set the head form. Everything downstream depends on this stage being right, so concentricity between the bore and the outside diameter is held tightly through grinding.

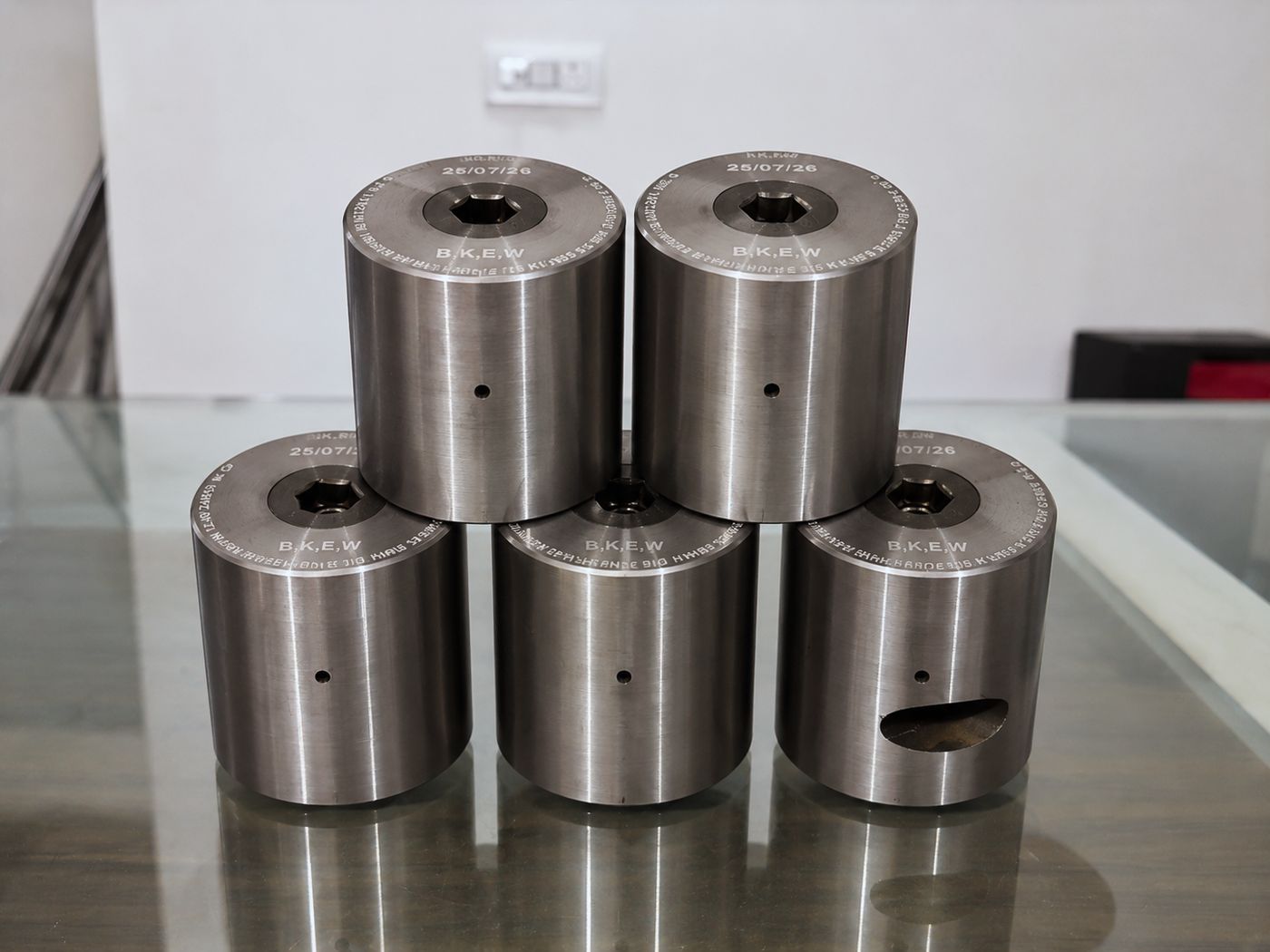

Bodies are etched with batch and date before dispatch, which means a die can be traced back through heat treatment if a question is raised months later.
Features
- Formed head cavity to drawing
- Concentric bore and outside diameter
- Etched with batch and date
- Vacuum heat treated for hardness
- Surface finished for clean material flow
Applications
- Bolt and screw head forming
- Nut blank preparation
- First-station forming on multi-station formers
Specifications
| Material | M2 high speed steel · tool steel |
|---|---|
| Heat treatment | Vacuum |
| Marking | Batch and date etched |
| Size range | 8B to 38B |
| Finishing | Ground and polished bore |
Related
Often supplied together.
Carbide Dies
Tungsten-carbide dies for high-volume cold forming, where wear life decides the cost per part.
View product
Punches
Formed-nose punches in hex, spline and flat profiles — coated and uncoated.
View product

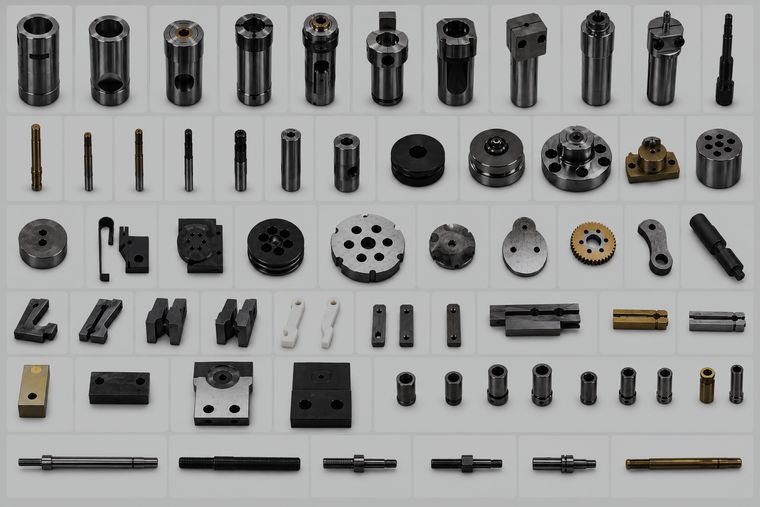

Nut Former Tooling
