Forming tooling
Punches

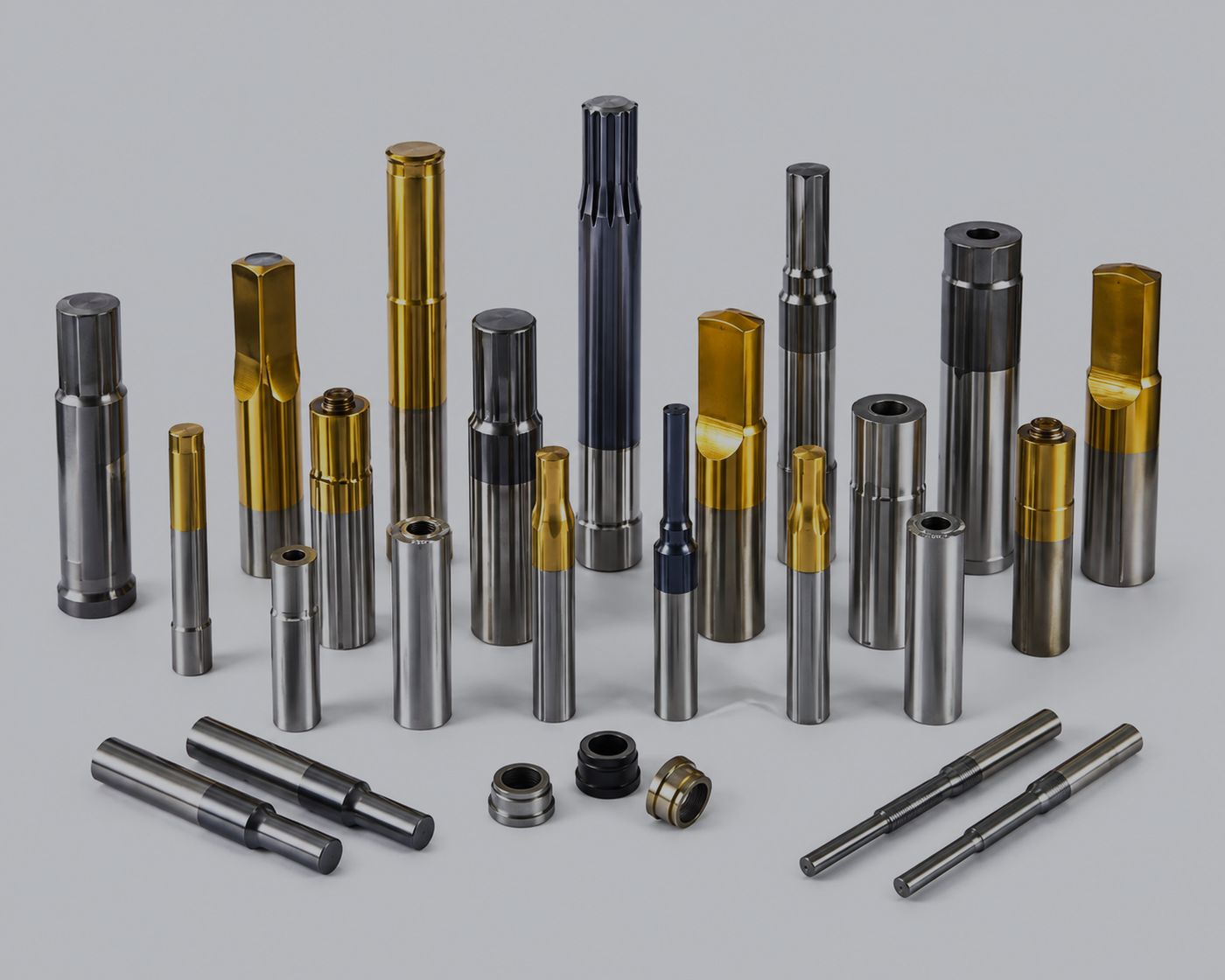

Formed-nose punches in hex, spline and flat profiles — coated and uncoated.
The punch does the forming work. We cut the nose form by EDM or grinding depending on the geometry, then finish the shank so it seats without play in the holder.
Coated punches are supplied where the customer runs abrasive material or wants longer intervals between changes. Uncoated punches remain the practical choice for many standard duties.
Features
- Hex, spline, flat and custom nose forms
- Coated or uncoated finish
- Ground shank for accurate seating
- M2 high speed steel body
- Matched to the die set on request
Applications
- Head and shank forming on nut formers
- Piercing and extrusion stations
- Any station where nose geometry drives part form
Specifications
| Material | M2 high speed steel |
|---|---|
| Nose forms | Hex · spline · flat · custom |
| Coating | Available on request |
| Heat treatment | Vacuum |
| Size range | 8B to 38B |
Related
Often supplied together.
KO Pins
Knock-out pins ground for concentricity, so the part leaves the die cleanly every cycle.
View product
Heading Dies
Heading dies that form the head geometry on bolts, nuts and cold-forged fasteners.
View product
Nut Former Tooling
A complete matched tooling package for multi-station nut forming machines.
