Nut former tooling

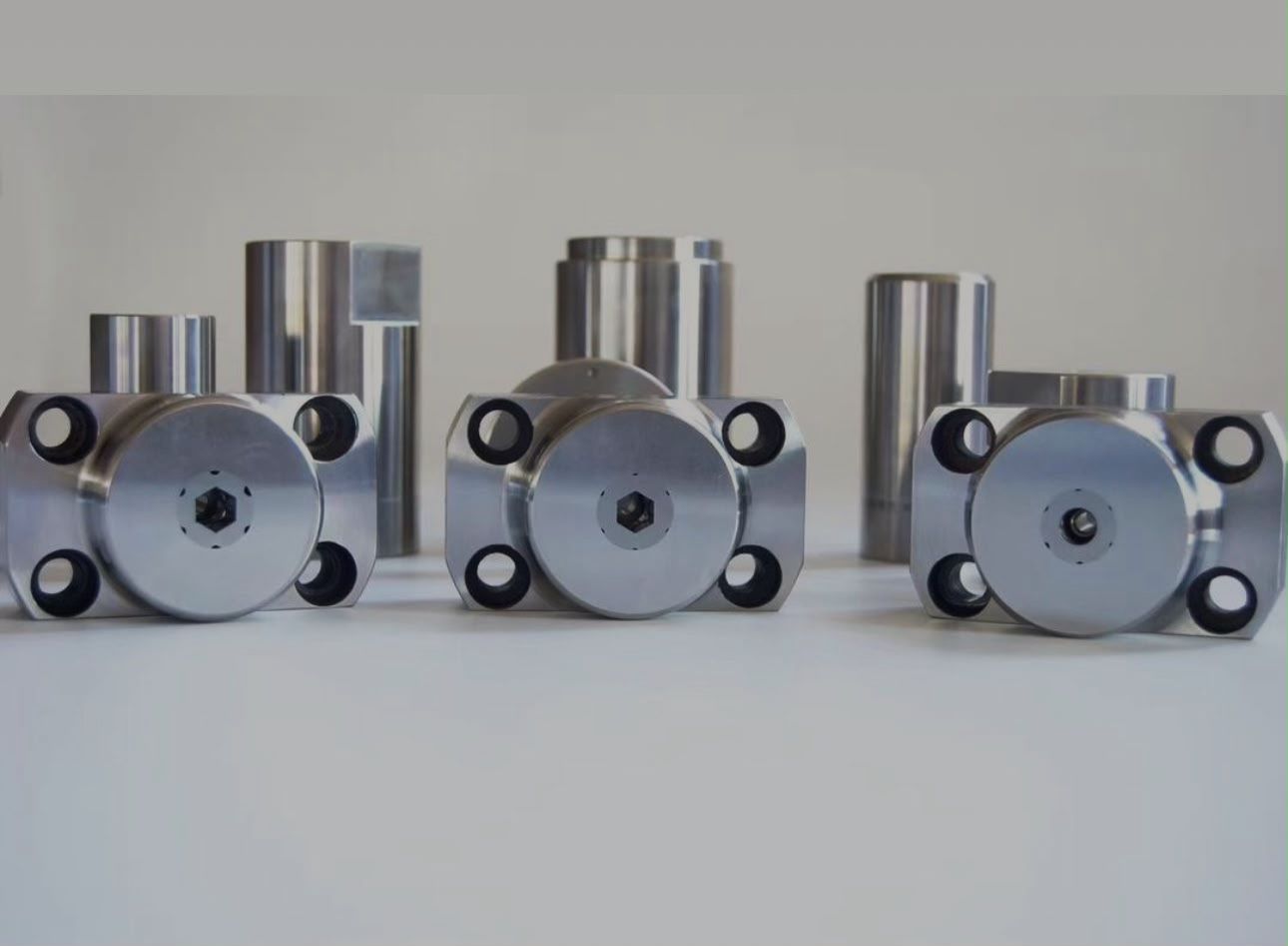

Segments
Forming segments that hold tolerance under repeated high-load cycles.
Segments carry forming load in the station and must keep their form and fit under repetition. We machine them from EN24 and tool steel, then grind the mating faces so the set closes correctly.
Where a customer supplies a worn segment as a sample, we can produce a replacement to match the existing set rather than requiring a full drawing.
Features
- Machined from EN24 and tool steel
- Ground mating faces for correct closure
- Produced to drawing or from a sample
- Vacuum heat treated
Applications
- Multi-station nut former stations
- Replacement of worn segments in running sets
- Forming duties with high closing loads
Specifications
| Material | EN24 · tool steel |
|---|---|
| Heat treatment | Vacuum |
| Finishing | Ground mating faces |
| Supply basis | Drawing or sample |
