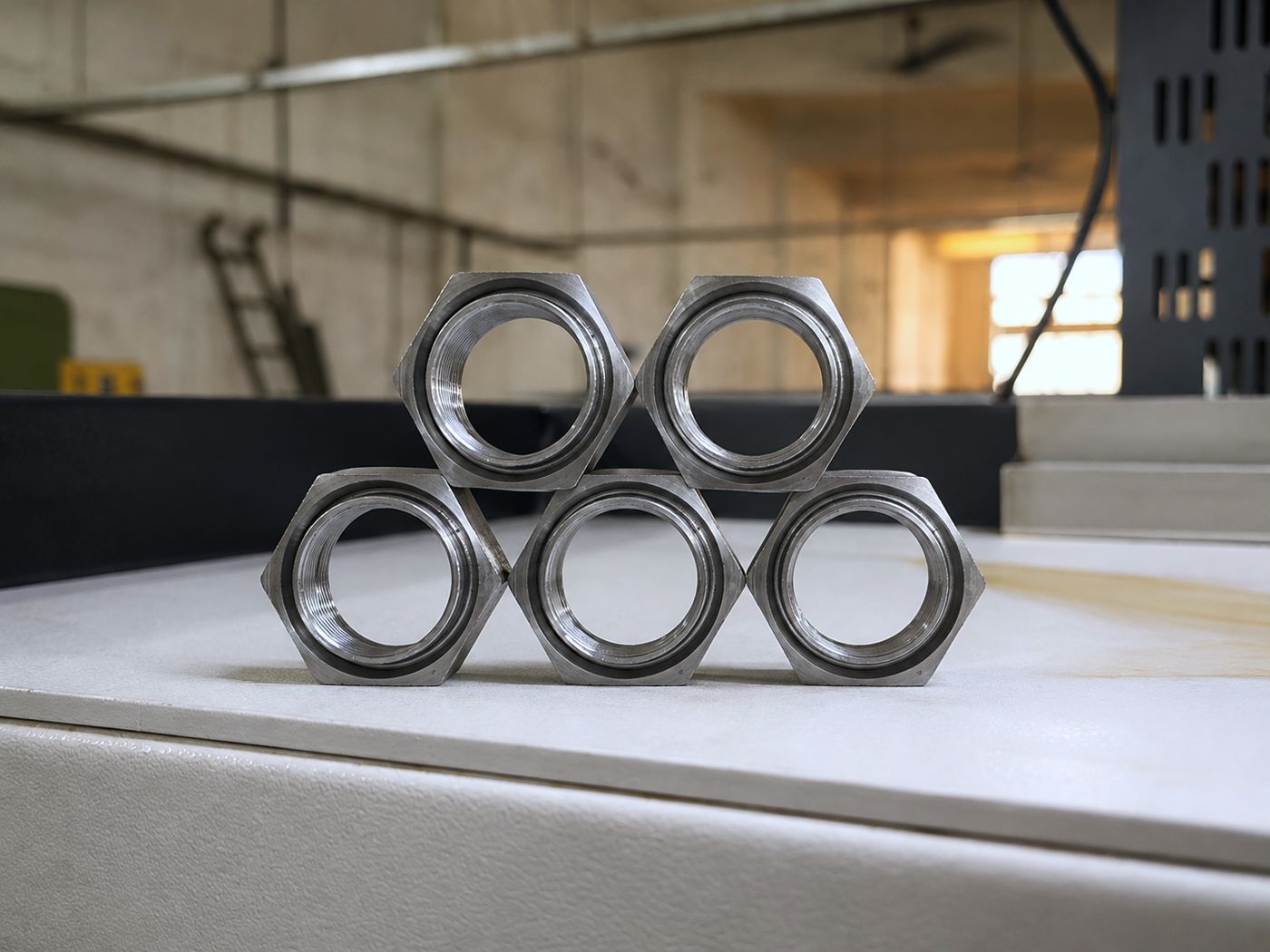

Hex Nut Tooling
Tooling sets configured for hex nut production across the standard size range.
Hex nut work is the volume duty for most of our customers. The tooling has to hold the across-flats dimension and the bore relationship through long runs.
We build hex sets from the same die, punch and pin lines described elsewhere, configured and matched for the hex form and the machine it runs on.
Features
- Configured for hex form and size
- Across-flats dimension held through the set
- Matched die, punch and pin
- Repeat sets from record
Applications
- Standard hex nut production
- High-volume fastener manufacturing
- Automotive and construction fasteners
Specifications
| Form | Hex |
|---|---|
| Range | 8B to 38B |
| Package | Die · punch · KO pin · segments |
| Heat treatment | Vacuum |
