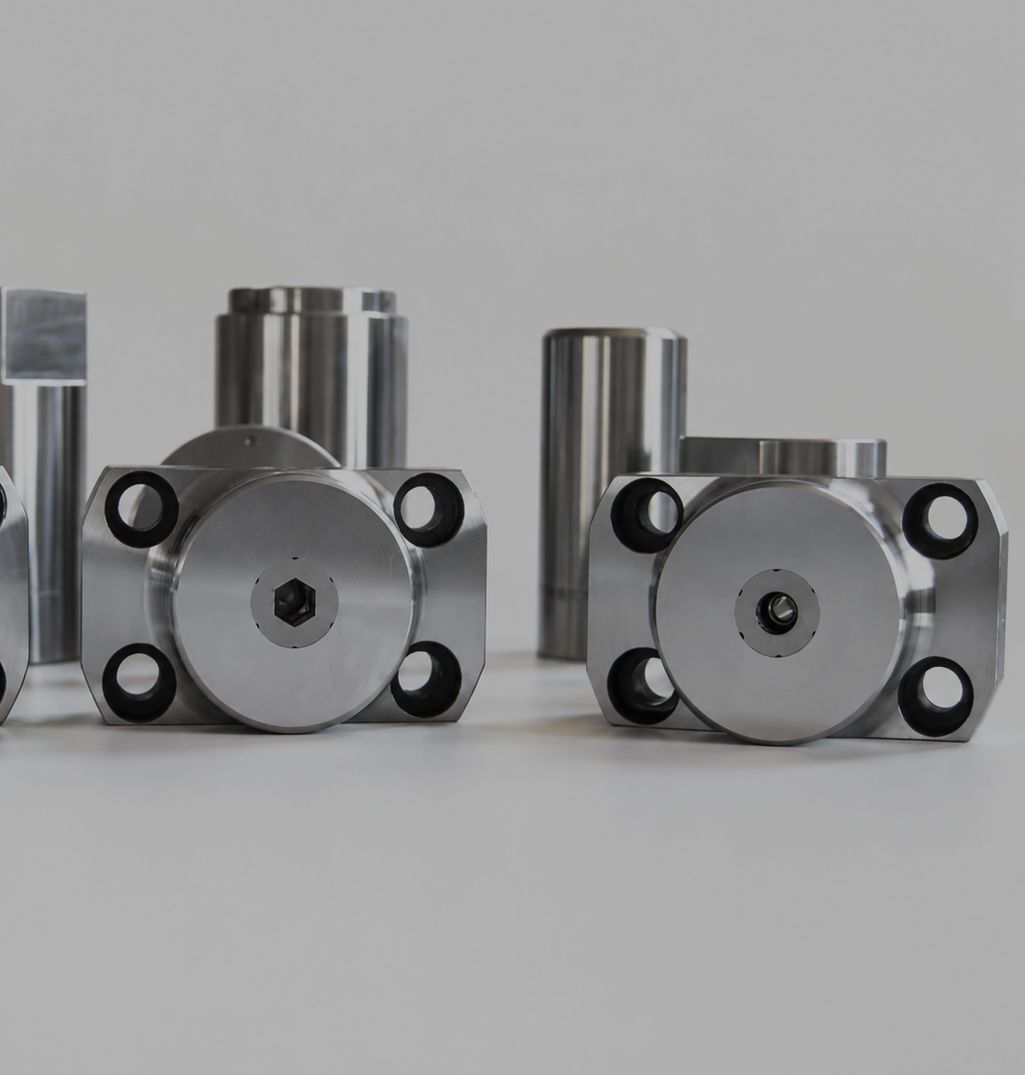

Flange Nut Tooling

Tooling for flange nut forming, where the flange face and the hex must both be held.

A flange nut asks more of the tooling than a plain hex — the flange face has to form cleanly and stay square to the bore while the hex is held.

We build flange sets to the drawing or the sample, and match the punch and die so the flange and hex form together rather than fighting each other.

Features

Tooling sets configured for hex nut production across the standard size range.

A complete matched tooling package for multi-station nut forming machines.

Tungsten-carbide dies for high-volume cold forming, where wear life decides the cost per part.

Start here

Tell us the form, the size and the machine it runs on. We come back with a quotation and a lead time.
