Grinding · 4 installed

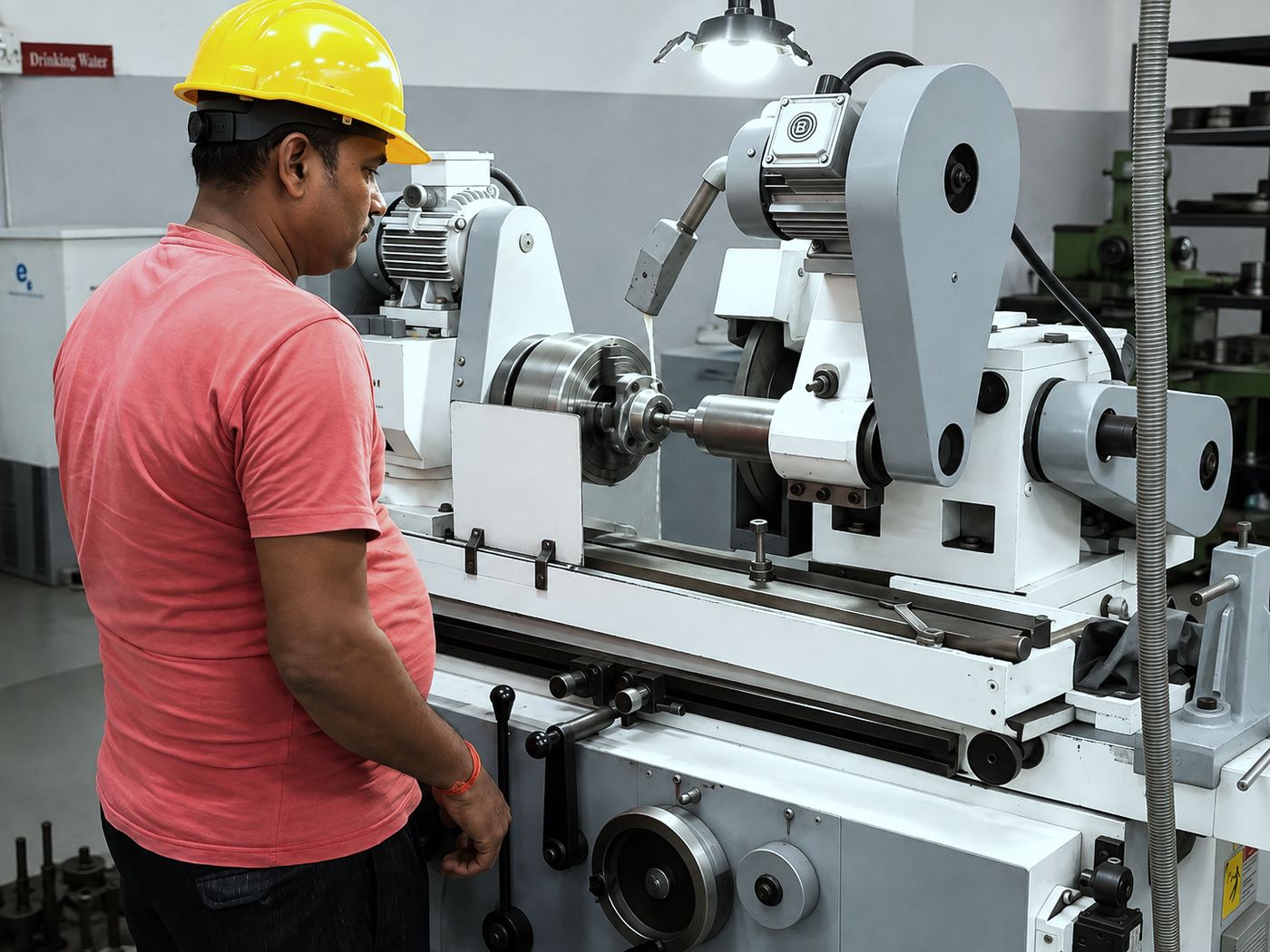

Cylindrical Grinding
Outside-diameter grinding of punches, pins and die bodies.
Cylindrical grinding finishes outside diameters to size and roundness after hardening, and is where the concentricity established in turning is finally guaranteed.
Punch shanks and KO pins are finished here, because seating and ejection both depend on the diameter being right along its whole length.
Manufacturing purpose
Grinding outside diameters to final size, roundness and finish.
| Group | Grinding |
|---|---|
| Units installed | 4 |
Capabilities
- OD grinding of punches, pins and bodies
- Roundness and size control
- Concentricity to a ground datum
- Finish suitable for close-fitting seats
Why this matters
A punch that does not seat true will form a part that is not true. OD grinding is where that is settled.
